Modbus Converter / Gateway Omron Host Link Protocol

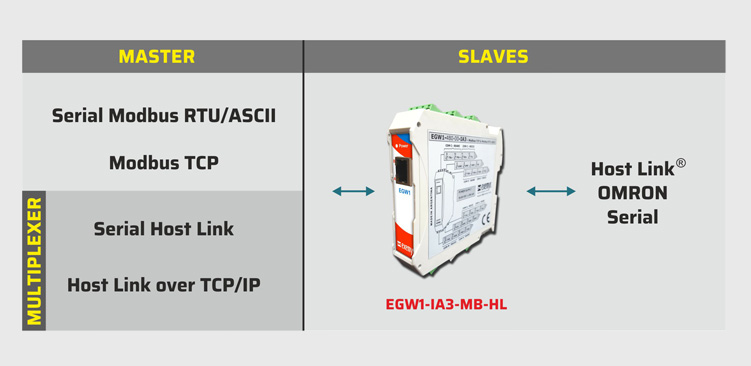

The EGW1-IA3-MB-HL is an industrial converter/gateway that allows the integration of Host Link slave devices into Modbus networks, functioning as an additional slave.

Among its functions it has:
• Modbus Serial (RTU/ASCII) to Host Link Converter
• Modbus TCP to Host Link converter
• Hostlink TCP to Host Link converter
• Hostlink Serial/TCP to Host Link Multiplexer


  • Features 4 RS232/485 Serial Ports: Modbus RTU/ASCII and Hostlink (up to 115,200 Baud)
  • Features 1 10/100 BaseT Ethernet Port
  • Easy port configuration
  • DIN rail mounting. Fire-resistant industrial enclosure
  • Wide power supply range: +10 to +30 VDC

    • PART NUMBER OBSERVATIONS
    EGW1-4B0-00-IA3-MB-HL 4 ports RS-232/RS-485
    1 port Ethernet 10/100 Base T, Conector RJ45
