Gateway Modbus to DF1

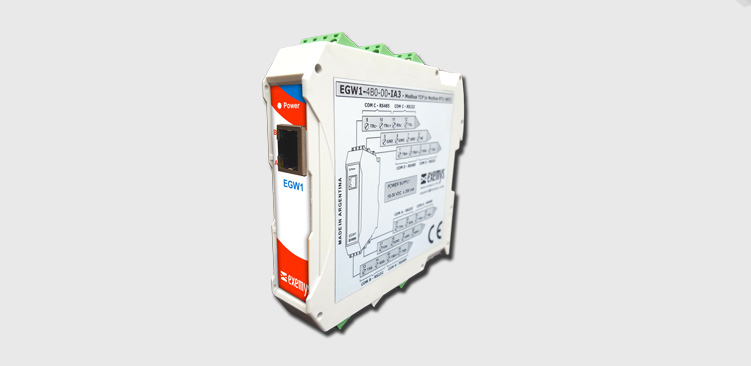

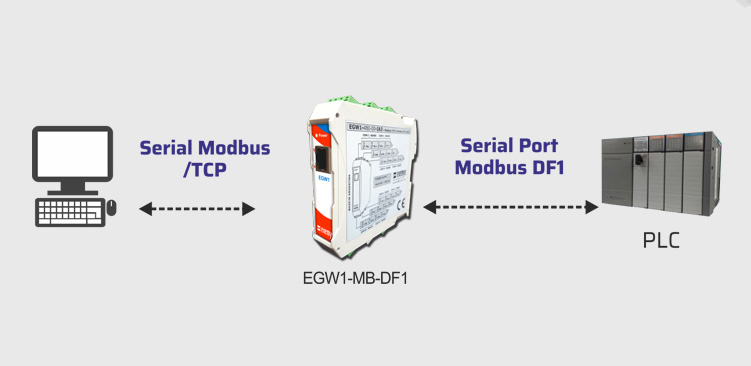

The EGW1-MB-DF1 is a Modbus Serial/TCP to DF1 gateway designed to provide access to PLCs with DF1 connectivity from any device compatible with Modbus Serial or Modbus TCP.

Protocol conversion is handled via easily configurable translation tables, allowing PLC Input, Output, Integer, Bit, and Status files to be mapped to Modbus objects such as Discrete Inputs, Coils, Input Registers, and Holding Registers.


  • Protocolo DF1 Full Duplex.
  • Supports Modbus Serial (in ASCII and RTU modes) and Modbus TCP.
  • Supports up to 8 concurrent Modbus TCP slave connections.
  • Simple installation and configuration via web browser or web console.
  • Communication speed of up to 115,200 bps.
  • DIN-rail mounting, with a temperature-resistant industrial enclosure.
  • Wide supply voltage range: +10 to +30 VDC.

    • PART NUMBER SERIAL PORT
    EGW1-110-00-IA3-MB-DF1 1 RS232 / 1 RS485
