DABinWeb Based Supervision

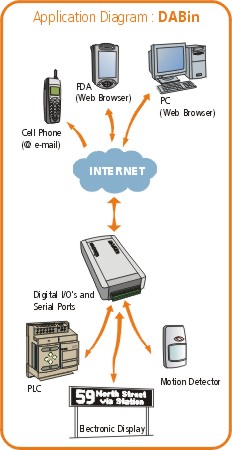

DABin enables any remote device to be managed through a web browser just if you were there. This state-of-the-art, powerful device provides interaction with different electric and electronic equipment through a standard Internet browser. By accessing the web page resident within DABin, you can monitor the status of all the devices connected to it, through its multiple digital Inputs/Outputs and serial ports. If you wish to operate off-line, you will be informed of any active alarms or events which may have occurred within the device by means of an e-mail message. This message is sent by DABin to a cellular phone, pager, PDA or e-mail account.
Features
Develop customized Web pages with a standard Web editor and easily download them to DABin.
Inputs monitoring via SNMP.
Stand alone web server.
Embedded FTP server.
Modbus ASCII / RTU, Hostlink, DF1 protocols.
Up to 4 serial ports (RS232/RS485/RS422).
Built-in digital inputs-outputs.
Alarm report by e-mail.
Flexible power requirements.
Secure access and management.
Device search utility.
Software de Configuración sin costo (DCM).
DIN Rail mounting (optional).
Applications
Industrial Automation.
Vending Machines.
Energy Systems.
Refrigerated Warehouses.
Building Automation and Security Industry.
Access Control.
Retail / POS Industry.
Ordering Information
| serial ports | Digital | |||||
| part # | Ethernet | RS232 | RS485 | RS422 | inputs | outputs |
|---|---|---|---|---|---|---|
| DABin-1083-ST-MB | 10 base T | 1 | xxx | xxx | 8 | 3 |
| DABin-1C43-ST-MB (*) | 10 base T | 1 | 1 | 1 | 4 | 3 |
| DABin-1083-ST-DF1 | 10 base T | 1 | xxx | xxx | 8 | 3 |
| DABin-1083-ST-HL | 10 base T | 1 | xxx | xxx | 8 | 3 |
| DABin-1C43-ST-HL (*) | 10 base T | 1 | 1 | 1 | 4 | 3 |
| (*) Only one configurable serial port | ||||||
