Products > Analog / Digital Acquisition > RMS1-GR

RMS1-GR Digital and Analog I/O in Modbus Serial

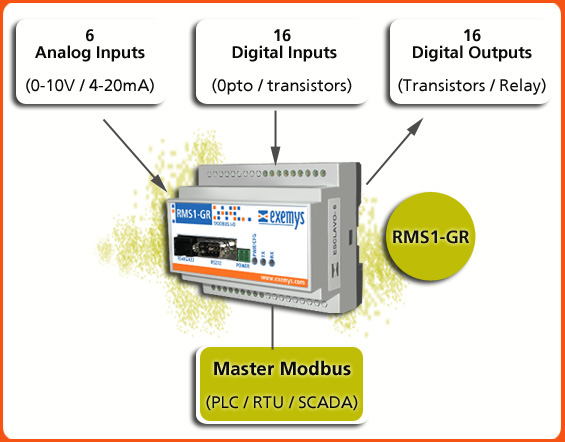

The RMS1-GR allows the expansion of the number of digital and analog inputs and outputs of any control or automation system handled from the Modbus Serial protocol (ASCII or RTU)









Features

Up to 16 Relay or Transistor outputs

Up to 16 Transistor or Opto-Isolated inputs

Up to 6 Analog Inputs (0-10V / 4-20mA)

Power supply of 10 to 30Vdc

RS232 or RS485 Serial Port.

Simple configuration

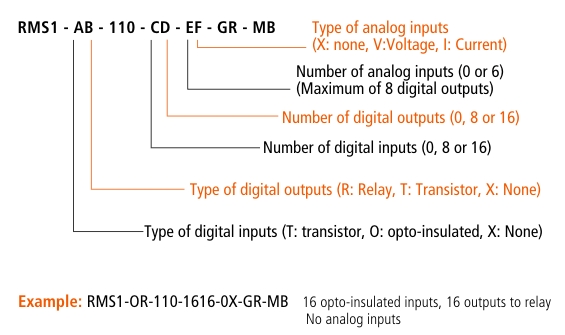

Order Code:

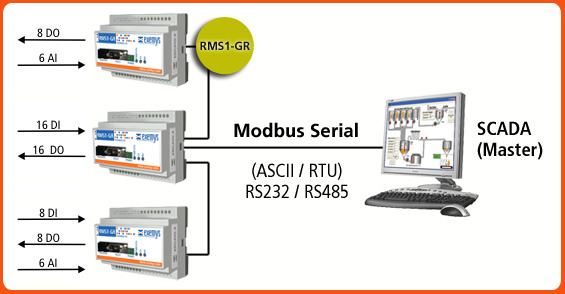

Example Application:





Documentation

User's manual

Datasheet
