SGW1-IA2-MMP Modbus Multiplexer

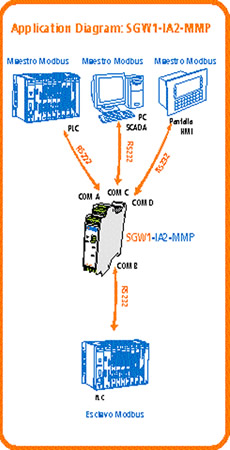

SGW1_IA2_MMP lets you connect up to 3 Modbus
ASCII/RTU masters to your Modbus ASCII/RTU slaves transparently.
If you have to connect Modbus slaves to more than one master,
SGW1_IA2_MMP is the right
choice for you.
SGW1_IA2_MMP buffers the master´s polls giving them
priorities, depending which of them came first, and then sends
them to the slaves.
Each serial port can be configured with different baud rates,
parities and Modbus protocols (ASCII or RTU). So it is also
possible to use SGW1_IA2_-MMP as a converter.
Features
Up to 3 Modbus RTU/ASCII masters.
It can be used as a Modbus RTU to Modbus ASCII converter.
Up to 32 RS485 slaves (SGW1-3100-IA2-MMP) or 1 RS232 slave (SGW1-4000-IA2-MMP).
No need for registers tables.
Wide range power supply 9-26V AC or 9-30 V DC.
Easy configuration.
Industrial pluggable terminal blocks.
Mounting on Din rial.
Ordering Information
| serial ports | ||
| part # | RS232 | RS485 |
|---|---|---|
| SGW1-310-00-IA2-MMP | 3 | 1 |
| SGW1-400-00-IA2-MMP | 4 | xxx |
| SGW1-130-00-IA2-MMP | 1 | 3 |
